.308 Win. vs .300 Win. Mag: Ballistics, Cost, and Accuracy

It might sound crazy, but these two popular hunting cartridges have more in common than you think. Before you buy your next rifle, see how they compare

.300 Win. Mag and .308 Win
The .300 Win. Mag. (right) has a much larger powder capacity than the .308 Win. (left), but each is superior to the other in different ways.Ron Spomer

Comparing the short-action .308 Winchester to the long-action, belted .300 Winchester Magnum will raise howls of “apples and oranges” from some readers. But we’re not tasting fruit here. We’re trying to understand how two different cartridges propel the same diameter bullets of the same weight in order to engage targets or game animals. Both can be used for each scenario, so let’s compare!

Despite their size differences, both the little .308 Winchester and the big .300 Winchester Magnum shoot bullets .308 inches in diameter. This is the all-American bore size—.30 caliber —made famous by the .30-30 Winchester of 1894 followed by the even more famous .30-06 of 1906, the .300 Savage of 1920, and the .300 Weatherby Magnum of—surprise—1944. Yes, the larger, faster, more powerful Weatherby Magnum beat the .300 Winchester to the magnum punch by a solid 19 years. But, the full magnum-length Weatherby was proprietary and expensive while the Winchester was engineered to fit affordable, standard-length-action rifles common in the U.S. Winchester allowed any and all ammo makers to load their new .300 magnum, too. The result was an immediate success as American hunters scrambled to own and hunt with one of these new, powerful, manly rifles. (Hey, it was 1963. John Wayne was in his prime, and neither the Beatles nor the hippies had even shown up yet.)

Hunter and fallen Colorado bull elk
The author felled this Colorado bull elk with three 300 Win. Mag., 180-gr. Nosler Accubonds. The first shot on the shoulder would have done the trick, but sage advice with elk is to keep shooting until your bull is down and stays down.Ron Spomer

The .30-06 Springfield is central to this comparison because it not only falls between the .308 and .300 Win. Mag. in power, but is essentially the parent of the .308 Win. While some historians insist Winchester engineers worked from the .300 Savage to make the .308, a careful measurement of rim, head, and body diameters shows a clear connection to the .30-06. Arthur Savage probably used the .30-06 when developing his .300 anyway.

Because of the common dimensions of the .308 Win. and .30-06, many refer to the .308 as the .30-06 Short or, more derisively, the “.30-Not-Six.” Such teasing raises a legitimate question: Why would Winchester build a new hunting cartridge that was weaker than the already widely used and respected .30-06? Doesn’t cartridge development push toward higher performance?

black moose in field
Don’t let the .308 Winchester’s small size fool you. The controlled expansion of a 165- to 180-grain bullet is more than potent enough for moose.Ron Spomer

Well, yes. But performance is not always about velocity and power. The .308’s performance advantage is efficiency. Because its overall length is a half inch shorter than the .30-06, it can be run through shorter, lighter, faster-cycling actions. Additionally, more cartridges can be carried by an individual, a truck, or a plane. You see, Winchester created the .308 in an effort to have it adopted as the new U.S. military cartridge. They succeeded, but only in 1954, two years after they’d released it as a civilian hunting round. NATO also adopted the .308 Winchester, calling it the 7.62x51mm NATO. It was chambered in the new M14 U.S. Service Rifle in 1957 and saw duty in Korea and Vietnam, with soldiers undoubtedly appreciating its lighter recoil.

hunter and dead grizzly bear in the snow
With proper shot placement, grizzly bears are no match for a .300 Win. Mag. This one was shot with a 180-gr. Barnes MRX bullet from a Borden Timberline rifle wearing a Swarovski Z3 scope.Ron Spomer

Of course, the shorter .308 case holds less powder than the longer .30-06 and suffers accordingly, but not by much. It gives up about 100 fps to the 06 when both fire 150-grain bullets. Few fairly-struck big game animals have lived to notice the difference. But load up a 180-grain slug, and the .30-06 begins to pull away, besting the .308 by 200 to 250 fps. But most American big game hunters in the mid-20th century were pursuing whitetails, mule deer and pronghorns. For those, a 150-grain bullet at 2,700 to 2,800 fps provided plenty of reach and power without punishing recoil. It still does. And today’s premium bullets, including 165 to 180-grain models, make it more effective than ever.

Winchester obviously paddled a different river with their .300 Win. Mag. In a bid to capture America’s “bigger and faster” ethos, they went to the same H&H belted magnum case Weatherby was using. Actually, Winchester had already used this case in 1956 to create the .458 Win. Mag. They went to that well again to build the .338 Win. Mag. and .264 Win. Mag. in 1958. All three fit standard-length actions, but none would ever approach the popularity of the belatedly released .300 version. With its fatter case, the new .300 enclosed enough powder to drive a 150-grain bullet 300 fps faster than the .30-06 and 400 fps faster than the .308. Shooters paid the price in dollars at the pump and recoil at the shoulder, but they manned up and took it, many of them thinking the belt around the head was needed to contain the fearful pressures generated within. In reality, the belt was an unnecessary artifact needed for headspacing on the sloped shoulders of the original H&H cartridges. The 25-degree angle of the .300 Win. Mag. shoulder made the belt superfluous, but it was such an effective marketing tool, Winchester wisely retained it.

hunters and African blue wildebeest
The African blue wildebeest is a famously stout, heavily boned, tough antelope, but this bull met his match in a 140-grain Norma Kalahari bullet in .308 Win. fired from a Blaser R8 rifle at 245 yards. One was all it took.Ron Spomer

Odd though it seems, both the .300 Win. Mag. and .308 Win. grew steadily in popularity. With its power and flat trajectory, the .300 built a reputation as a world beater. Shooters could opt for the flat trajectory of a 150-grain bullet to reach a distant mule deer at 3,300 fps or suffer the heavy punch of a 220-grain round nose at 2,700 fps to calm down an agitated brown bear. From 10-pound dik-dik to 1,800-pound Lord Derby eland, no African game was out of reach.

Meanwhile, the .308 won converts for its mild recoil, extreme accuracy, affordability, and more than adequate killing power. It proved capable of terminating anything the old .30-06 could with less recoil. Mandatory use and training in the military introduced thousands of new shooters to this round, and on target ranges, it began winning everything.

Given that history, let’s compare these two side-by-side in several categories important to hunters and sport shooters.

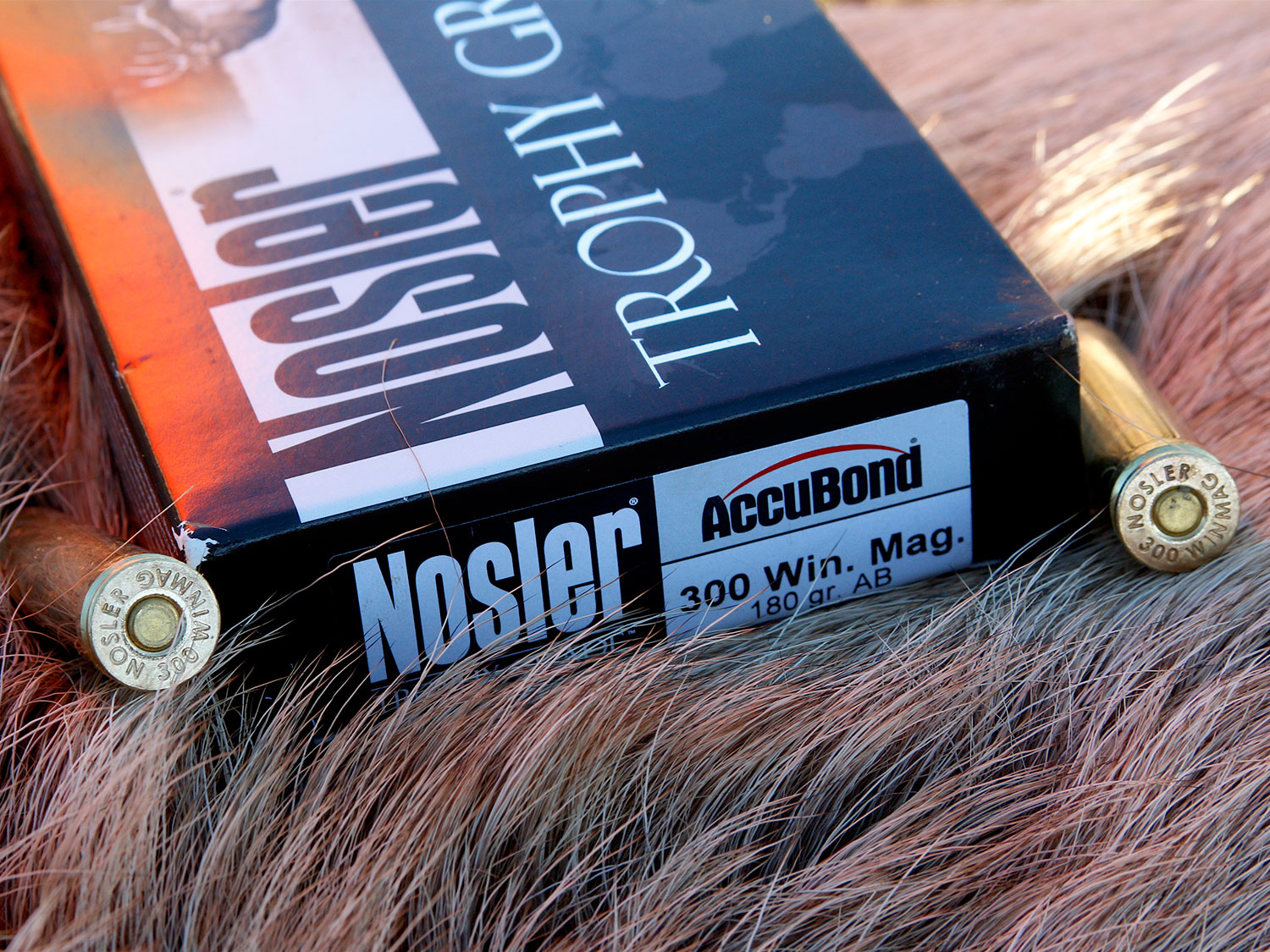

.300 Win. Mag Accubond
The .300 Win. Mag. has been one of the most used and revered elk cartridges for the past half-century. It shows no signs of declining in popularity.Ron Spomer

Ballistics (Trajectory and Energy)

Obviously, the magnum wins this one hands down. It holds about 82 grains of water when accommodating a 180-grain bullet. The .308 Win. holds about 48.6 grains of water. Stuff the .300 with about 73 grains of IMR 4831 powder, and it should kick that bullet out at 3,150 fps. Top end for the .308 might reach 2,615 fps. With 150-grain bullets, figure about 3,420 fps for the .300, 2,997 for the .308, according to a Nosler Handloading Manual. Here's how that translates in drop, drift, and energy at 300 and 400 yards for a 150-grain AccuBond bullet, B.C. .435 zeroed at 200 yards in a 10 mph right angle wind.

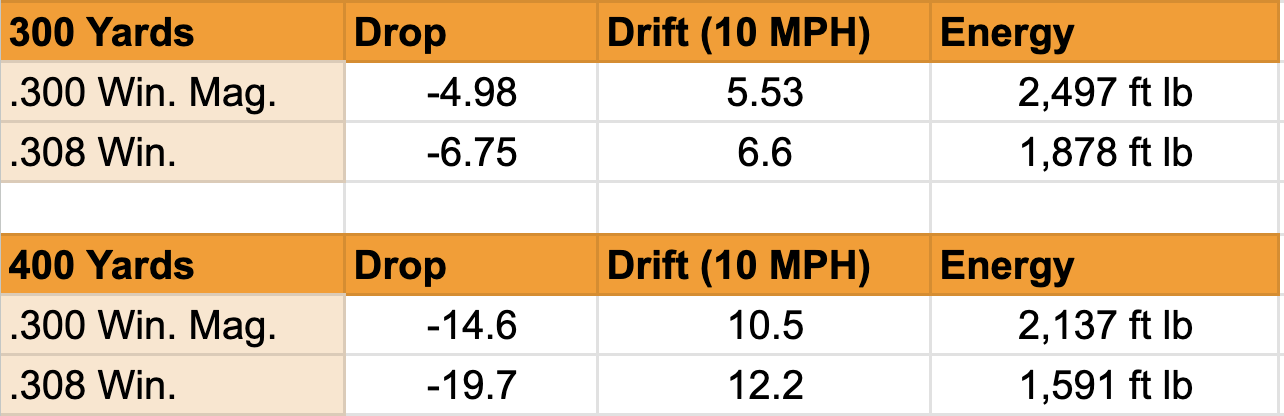

300 yd. Drop/Drift/Energy 400 yd. Drop/Drift/Energy
300 Win. Mag. -4.98/5.53/2,497 ft lb -14.6/10.5/2,137 ft lb
308 Win -6.75/6.6/1,878 ft lb -19.7/12.2/1,591 ft lb
Linda Powell and dead mule deer
Linda Powell took her largest mule deer ever with the “little” .308 Win. using a Nosler 150-grain Accubond in her Mossberg Patriot.Ron Spomer

Recoil

As you might guess, the .308 minimizes recoil, but look at how much. It nearly cuts it in half. This can contribute mightily to accurate shooting. Reduced recoil is likely a significant reason for the .308 Winchester’s reputation for accuracy. Here are recoil energies and velocities in 8-pound rifles with two popular bullet weights.

150-gr. Energy/Velocity 180-gr. Energy/Velocity
.300 Win. Mag. 30.2 ft lb/15.77 fps 38.5 ft lb/17.6 fps
.308 Win. 18.3 ft lb/12.13 fps 20.0 ft lb/12.7 fps

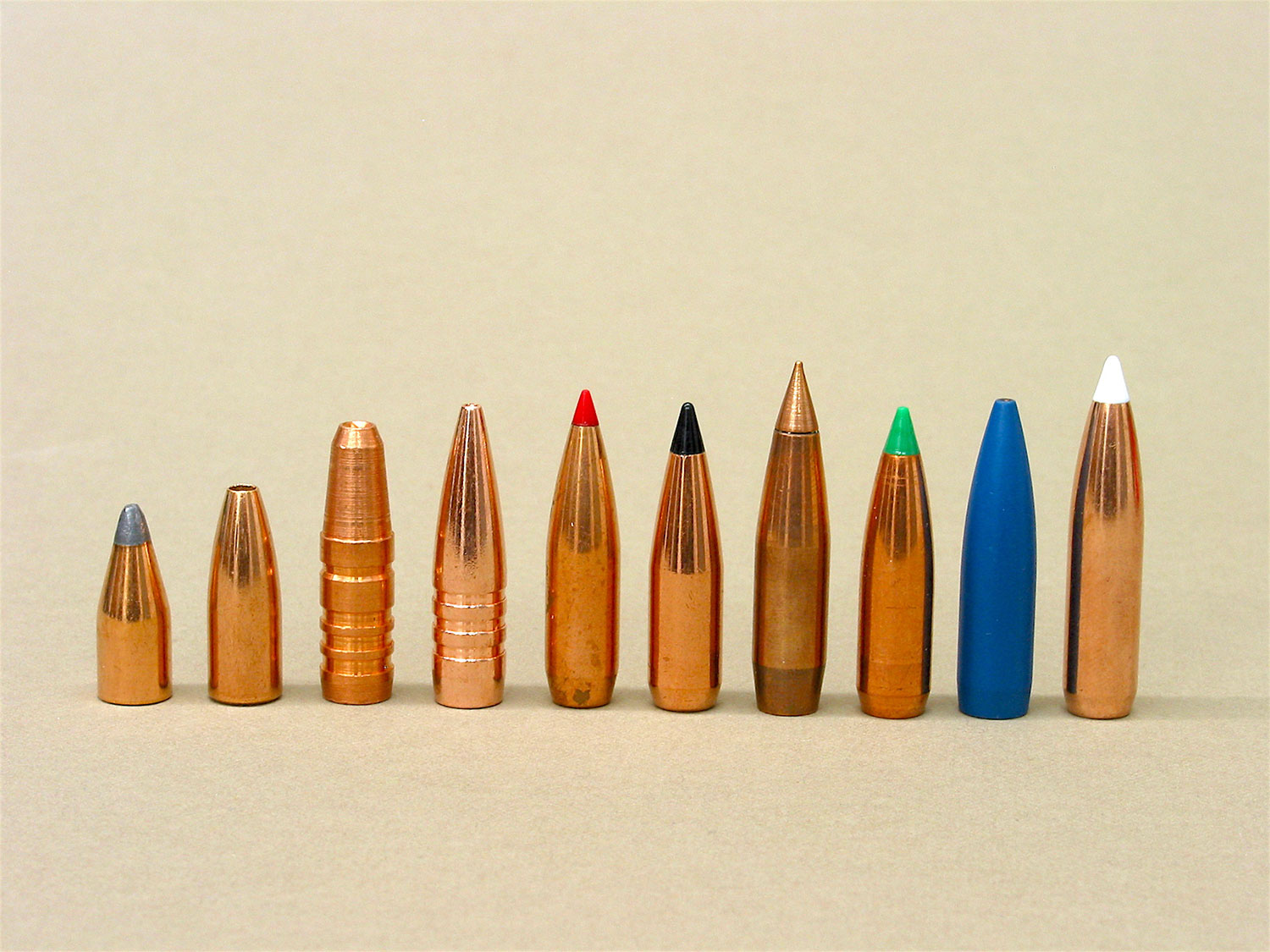

bullets lined up on tan background
Both the .308 Win. and .300 Win. Mag. handle a wide variety of .308 diameter bullets, from 100 to 200 grains. The 300 Win. Mag. has sufficient horsepower to work well with 210- to 220-grain bullets, too.Ron Spomer

Ammo Versatility and Cost

The .300 Win. Mag. wins here because it has the powder capacity to handle bullets as heavy as 220 grains, moving them as fast as 2,770 fps to generate a bone-crushing 3,800 ft lbs of energy. The .308 Win. can nudge a 200-grain bullet to about 2,400 fps and generate muzzle energy of about 2,550 ft lbs. It’s challenging to find .308 Win. factory loads with bullets much heavier than 180 grains. The best are sleek, boat-tailed, 165- to 170-grain bullets.

Virtually any retail store selling ammunition will carry both .308 Win. and .300 Win. Mag., but a 20-round box of .308 will run $15 for the cheap stuff to maybe $59 for super premium while the .300 Win. Mag. will start around $25 and climb quickly to as high as $65.

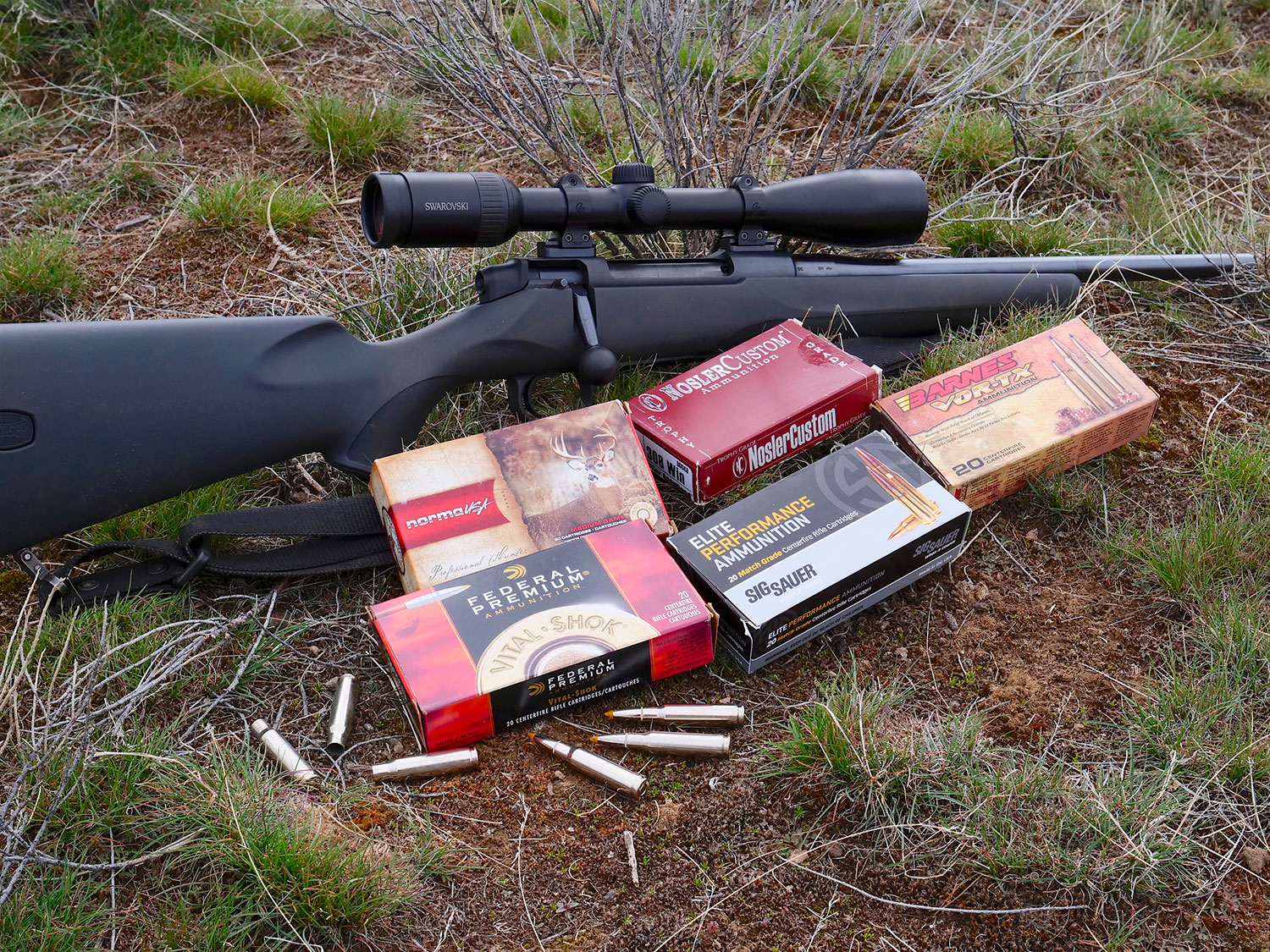

variety of ammunition on the gorund next to rifle
The Mauser M18 and various brands of .308 Win. ammo. Virtually everyone who manufactures ammunition makes a variety of .308 Win. loads with bullet weights ranging from 110 to 200 grains.Ron Spomer

Rifle Selection, Size, and Cost

We’ll call this a tie. Virtually every rifle maker chambers for both of these popular rounds, especially in bolt actions, but also in lever-actions, autoloaders, single shots, and pumps. You’ll find precision target rifles more often chambered in .308 Win., but plenty of sniper-style rifles are wrapped around the .300 Win. Mag. The .300’s ability to drive heavy, high B.C. bullets at good velocities makes it a serious contender at extreme ranges. The .308 Win. begins petering out after 700 yards or so. Light hunting rifles are easier to find in .308 and easier to shoot, and barrels will last a lot longer.

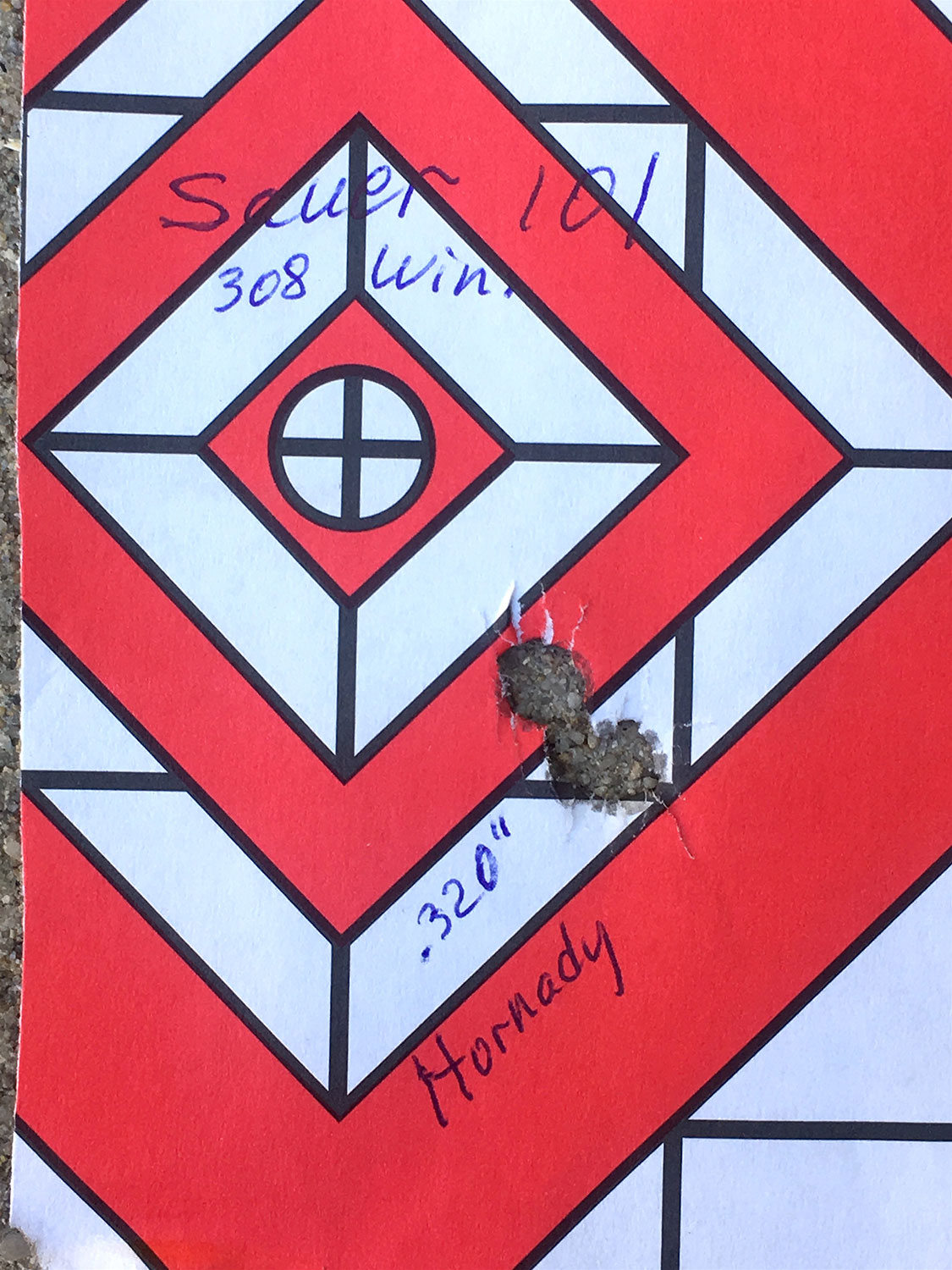

3-shot group on target
The .308 Win. is famously accurate, but probably due to precision-made rifles and ammo more than any inherent magic in the shape of the cartridge.Ron Spomer

Accuracy

You might imagine the .308 wins this easily, given all the tactical, target, sniper, and precision rifles chambered for it, but the .300 Win. Mag. has won plenty of 1,000-yard target competitions. Rumors about the .300’s belt compromising its accuracy potential are exaggerated out of proportion to reality. In a hunting rifle especially, you needn’t worry about .300 Win. Mag. precision. I’ve worked with several .300s that shot honest 1/2 MOA. The .308, thanks to lots of precision-built factory match ammunition and rifles, long barrel life, and mild recoil, is the best option for high volume target shooting.

Conclusion

Even though more modern designs have bested both of these cartridges, they more than hold their own in today’s shooting world. Improved bullets have made them more effective on game than ever before. Standard twist rates of 1 in 10 inches stabilize most modern, high B.C. bullets, too. Most shooters choose the .308 Win. if they mainly target shoot and hunt whitetail-sized game. The .300 Win. Mag. is more popular with hunters who target shoot at extreme range and often hunt elk, moose, big bears and large African plains game. Both the .308 Winchester and .300 Winchester Magnum are poised to continue long and successful careers.
